• Only operate your DCI guidance system in accordance with the operating instructions for your system.
• Serious injury and death, as well as property damage, can result if underground drilling equipment strikes a natural gas line, high-voltage electrical cable, or other utility.
• Work slowdowns and cost overruns can occur if you do not use your system correctly.
• Properly calibrate your DCI guidance system anytime you change frequencies, transmitters, or drill heads and validate the calibration before every drilling project. If you fail to do so, depth readings will likely be inaccurate.
• Interference can lead to inaccurate depth readings and/or interruption of data. See "Special Notes About Interference" for more details.
• DCI guidance systems are used to locate and guide the transmitter (housing) underground. They cannot be used to locate underground utilities.
• Failure to find the front and rear locate points can lead to inaccuracies which may result in drilling off-path and striking an underground utility.
• The locate line on a DCI locator does not indicate the position of the drill head. DCI locators track the transmitter in its housing, which sits behind the drill bit. Also, when drilling steep and/or deep, the locate line may indicate a position behind or ahead of the transmitter. Please see the article "Steep and Deep" for important information on accurately locating the drill head when drilling steep and/or deep holes.
• Ensure that all underground utilities have been located, exposed, and/or accurately marked prior to drilling. Follow all proper safety precautions, such as potholing.
• DCI equipment is not explosion-proof and should never be used near flammable or explosive substances.
• Wear jobsite protective/safety clothing such as dielectric boots, gloves, hard hat, high-visibility vest, and safety glasses.
• Install transmitters into the drill housing as soon as possible after powering on. If you can't, unscrew the cap to power off the transmitter until you can install the transmitter into the drill housing to reduce RF exposure.
• Comply with federal, state, and local governmental regulations (such as OSHA) and all other customary or required safety precautions.

If you have any questions about the operation of your guidance system, please contact DCI Customer Service for assistance.

System working altitude: up to 6562 feet (2000m).

Operation may be compromised if the equipment is subjected to conditions outside these specified limits.

Ship in original carrying case or packaging of sufficient durability to prevent mechanical shock to equipment during transportation. See the Storage and Shipment of Batteries for the more information about that equipment.

If you have any questions about the operation of your guidance system, please contact DCI Customer Service for assistance

• Charger is intended for indoor use and is not waterproof or dustproof. To avoid overheating, make sure there is sufficient air circulation around the charger when in use; do not cover the charger.

• Charger must be kept away from heat sources and may not be used in environments with flammable or explosive atmospheres.

• Charger is only intended for use with DCI SuperCell-R Li 2.5A batteries. Do not use the charger with other types of batteries.

• Use only the power cords provided with your charger by DCI.

• Unplug charger when not in use.

• Charger contains hazardous voltages and there are no user-replaceable parts inside. Never attempt to remove the cover. Contact DCI Customer Service * for assistance.

• Do not dispose of the charger with municipal waste. See the article "Equipment and Battery Disposal."

Remove the batteries from all system components during shipping and prolonged storage. Failure to do so may result in battery leakage, which may lead to risk of explosion, health risks, and/or damage.

Lithium-ion batteries must be packaged and shipped by trained and certified personnel only. Never ship damaged batteries.

If you plan to store the battery packs for any period of time, please follow these guidelines:

• Store and transport batteries using a suitable protective case that will keep batteries safely isolated from one another. Failure to do so may result in short circuits, which may lead to hazardous conditions, including fire.
• Do not store the battery pack at temperatures greater than 113°F (45°C).
• Do not store the battery pack in a fully discharged state.
• Do not store the battery pack in the battery charger.
• Do not store multiple batteries together where their terminals or other loose conductive materials may contact one another and cause a short circuit.
• Never ship damaged batteries.
• If a lithium-ion battery pack will be stored for an extended period of time, pre-charge the battery to a charge level of 30% to 50% (two or three LEDs illuminated on the meter).
• Do not store the battery pack for more than one year unless it is periodically recharged to the 30% to 50% level.

Lithium batteries are considered Class 9 Miscellaneous Dangerous Goods under International Air Transportation Association (IATA) regulations; IATA regulation and Ground Transportation regulations 49 CFR 172 and 174 apply. These batteries must be packaged and shipped by trained and certified personnel only. Never ship damaged batteries.

Instead, it is your responsibility to dispose of such equipment at a designated collection point for the recycling of batteries or electrical and electronic equipment. If the equipment contains a banned substance, the label will show the pollutant (Cd = Cadmium; Hg = Mercury; Pb = Lead) near this symbol.

Before recycling, ensure batteries are discharged or the terminals are covered with adhesive tape to prevent shorting.

The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the equipment.

U.S.: Contact The Battery Network’s drop-off locator at 1-877-2-RECYCLE or visit:
www.batterynetwork.org

The following section is required to remain in French for compliance purposes and not translated.

Ce symbole figurant sur l'équipement indique qu'il ne faut pas le jeter avec les ordures ménagères.

Il vous incombe en effet d'éliminer ce type d'équipement en l'amenant à un site de récupération désigné pour le recyclage des batteries/piles ou d'appareils électriques et électroniques. Si le matériel contient une substance interdite, l'étiquette indiquera le polluant (Cd = cadmium ; Hg = mercure ; Pb = plomb) à côté de ce symbole. Avant de recycler les batteries, assurez-vous qu'elles sont déchargées ou que les bornes sont recouvertes d'un ruban adhésif pour éviter les courts-circuits. La collecte séparée et le recyclage de votre matériel usagé au moment de l'élimination permettront de conserver les ressources naturelles et de veiller à un recyclage en bonne et due forme, qui protège la santé humaine et l'environnement. Pour plus d'informations sur les sites où vous pouvez déposer votre matériel usagé à recycler, veuillez contacter les autorités municipales, votre service d'élimination des déchets ménagers ou le lieu d'achat du matériel.

Locating in the horizontal directional drilling (HDD) industry was initially based on locating a buried cable by sweeping the locator back and forth to find the highest signal strength (peak signal), indicating that the locator was over the cable. Unfortunately, this method did not always guarantee an accurate location of the cable, nor did it provide any depth information.

This “peak signal” method was adapted to HDD with the introduction of a transmitter that provides information on the position and depth of the drill head. However, this method is unreliable and inaccurate because the peak signal strength is not always directly above the transmitter housing.

In addition, peak signal locating doesn’t show where the drill tool is headed. Think of drilling like driving a car: it is more effective to look ahead through the windshield to see where you are going than to look down at the road through the floorboard to keep the car (drill tool) on the road (drill path).

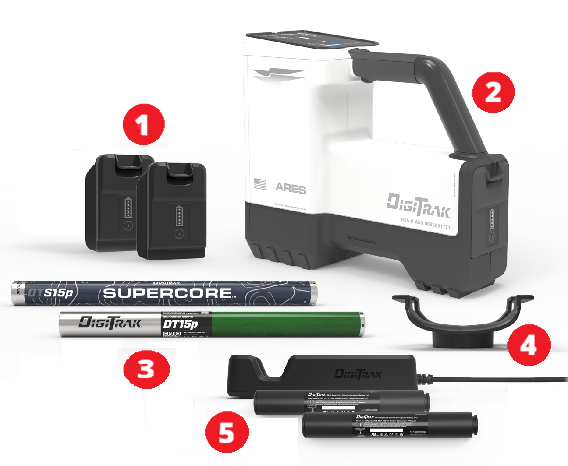

The DigiTrak ARES Genesis locator is a new generation of locator with new technology, upgraded features, and more power. All presented on bigger screens with informational text and better workflows.

• Simplified workflows and no more hidden menus or shortcuts.
• AI-powered Eagle Tech scans your entire bore path and selects the best frequencies out of 8 times as many frequencies than Falcon. You can also use the best pre-selected frequency bands for your region.
• No up or down bands. Choose A or B. How you load the transmitter battery doesn't matter.
• ARES Genesis SuperCore transmitters have more power, range, and a proprietary rechargeable battery. The Classic-Core transmitter can use multiple types of batteries. Both transmitters have two bands, which can include rebar, so you can switch mid-bore.
• Target mode and predicted depth mode provides predicted depth below the locator position.
• Rechargeable locator and SuperCoretransmitter batteries. The locator battery uses a standard USB-C connection.
• Over-the-air updates over Wi-Fi keep your locator up-to-date.

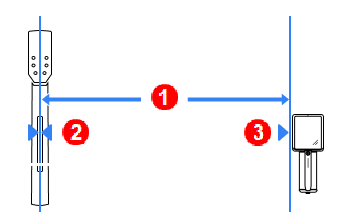

• Bluetooth allows pairing and easier calibrating transmitters in the housing above ground and calibrates all power levels and both bands at the same time.
• Built-in GPS with location tracking and lockout mode (with a Trak-It subscription）
• Transmitter SnooZe can be turned on and off from the locator.
• A universal saddle replaces the TrakStand and is compatible with a wider range of off-the-shelf tripods.
• More languages with more coming with future releases.

While DCI guidance systems provide you with technology to combat active interference (and passive interference, with the Sub-K® rebar enabled transmitter), no guidance system is immune to all interference.

Interference can lead to inaccurate depth readings and/or interruption or loss of data. Never rely on data that does not display quickly and/or remain stable.

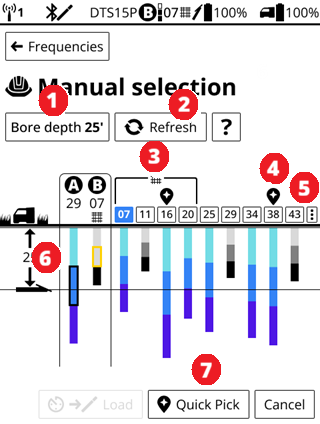

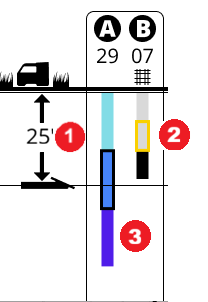

The ARES Genesis uses Eagle Tech to select frequencies based on measured interference at a specific time and location.

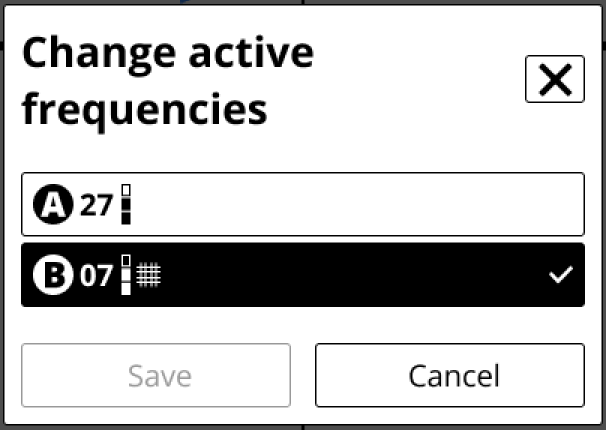

Interference levels change with time and with even minor changes in location. The frequency optimizer is not a substitute for prudent operator judgment. If performance drops while drilling, consider switching to the other selected band or use Max mode *.

While DCI guidance systems provide you with technology to combat active interference (and passive interference, with the Sub-K® rebar-enabled transmitter), no guidance system is immune to all interference.

Interference can lead to inaccurate depth readings and/or interruption or loss of data. Never rely on data that does not display quickly and/or remain stable.

Interference levels change with time and with even minor changes in location. If performance drops while drilling, consider switching to the other selected frequencies or use Max mode *.

Attenuation is normal in shallow depths less than 8 ft (2.4 m). If the signal strength is in a red box this indicates extreme interference. Depth and locate points may be compromised and the locator will not calibrate.

Interference is classified as either active (generating electro-magnetic signals) or passive (material that can conduct or block electro-magnetic signals). Sources of interference may include:

If you have any questions about the operation of your guidance system, please contact DCI Customer Service for assistance.

DCI’s design uses a “locate point” in the transmitter signal. The Front Locate Point (FLP), which is out ahead of the transmitter, shows where the transmitter housing is heading.

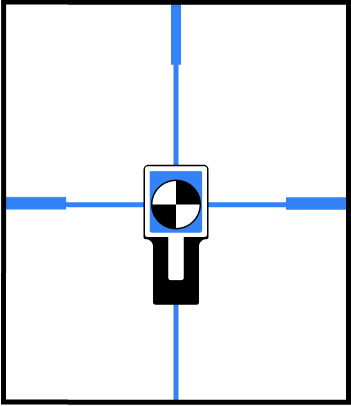

DCI invented the Ball-in-the-Box user interface to make it quick and intuitive to find a locate point, speeding up drilling jobs: just move the locator so the ball moves into the box on the screen.

Finding a locate point also helps you find the drill head itself.

There is a second locate point behind the transmitter called the Rear Locate Point (RLP). The two locate points, combined with a Locate Line (LL), pinpoint the precise location of the transmitter housing below ground.

They are arranged like an airplane, where the Front Locate Point is the plane’s nose, the Rear Locate Point is the tail, and the Locate Line is the wings.


If your drill path requires a consistent depth or to maintain a constant pitch, use the predicted depth feature at the Front Locate Point. This eliminates the need for depth readings over the transmitter, speeding up the drilling process.


When a transmitter is level (zero pitch) underground:

• the locate points (FLP and RLP) are at equal distances from the transmitter
• depth displayed on the locator is the actual depth, and
• the Locate Line (LL) indicates a position above the transmitter.

1. RLP
2. LL
3. FLP

When the transmitter is pitched up or down, the transmitter signal field also tilts.

When the transmitter is pitched down (negative pitch), the locate line on the screen reflects a future position of the transmitter, assuming the transmitter stays on the same trajectory (projected depth).

When the transmitter is pitched up (positive pitch, shown below), the locate line on the screen reflects a position behind the transmitter.

The depth reading on the locator is based on the projected depth point, which is not the same as the actual depth of the transmitter.

1. RLP
2. FLP
3. LL
4. Fore/aft offset
5. Projected depth
6. Transmitter at positive pitch
7. 30% (17°)

The differences in position and depth between the projected depth point and the actual location of the transmitter can be relatively small at low pitch and/or shallow depth.

When drilling at a steep pitch and/or significant depth, the differences are greater.

For example, if the transmitter is at a plus or minus 30% pitch and a 33'1" (10.1 m) depth, the locator depth reading will be 35' (10.7 m) (just under 6% difference from actual depth) and the locate line will be 6'6" (2 m) from being directly above the transmitter (-30% places the LL ahead and +30% places the LL behind).

You can use the pitch and the projected depth reading on your locator to determine the actual depth and the position (fore/aft) of the locate line:

Actual Depth

Fore/Aft Offset

For a given pitch, you can calculate actual or projected depth:

Utility companies and municipalities increasingly require a digital as-built report to ensure drilling parameters were met.

The Bore log feature on your ARES Genesis locator lets you easily capture and store the rod-by-rod data of your pilot bore, including adding the depth and type of utilities, pins and flags to mark features, and include offset and deviations for the running line.

When used with DCI’s DigiTrak LWD app, geo-tagging the entry and exit automatically ties the as-built to a physical location.

With a TeraTrak R1 App, create bore plans and import them directly into your Aurora display to compare rod placement to the planned bore.

With a free company and user account on the myDCI portal, upload bore logs from your locator to the LWD App on your mobile device.  With an additional LWD cloud subscription, you can upload and store your files on myDCI and share the files with the rest of your company even during drilling to show progress to back-office personnel.

After importing your bore log file into the Log-While-Drilling (LWD) software, you can edit, annotate, and finalize the precise report you or your customer requires.

On the DigiTrak Aurora remote display, use our free LWD Live app to view the drill profile in real-time as each rod is completed.

The ARES Genesis locator has a four-way D-pad on top and a trigger switch under the handle to navigate menus and select options.

To turn on the locator, squeeze and hold the trigger for 2-3 seconds.

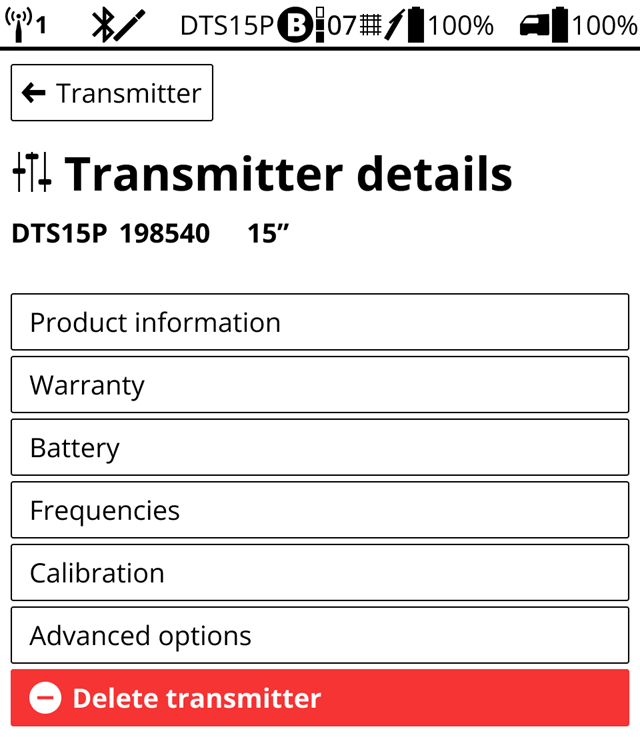

Use the D-pad to scroll up or down menu options and buttons and then squeeze the trigger to select the button or option. The active button is blue.

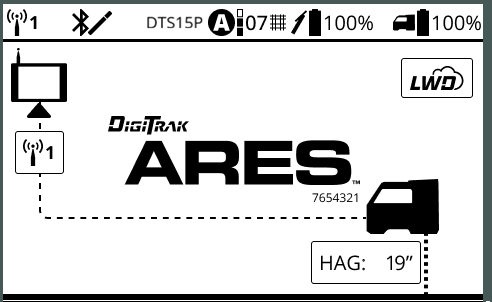

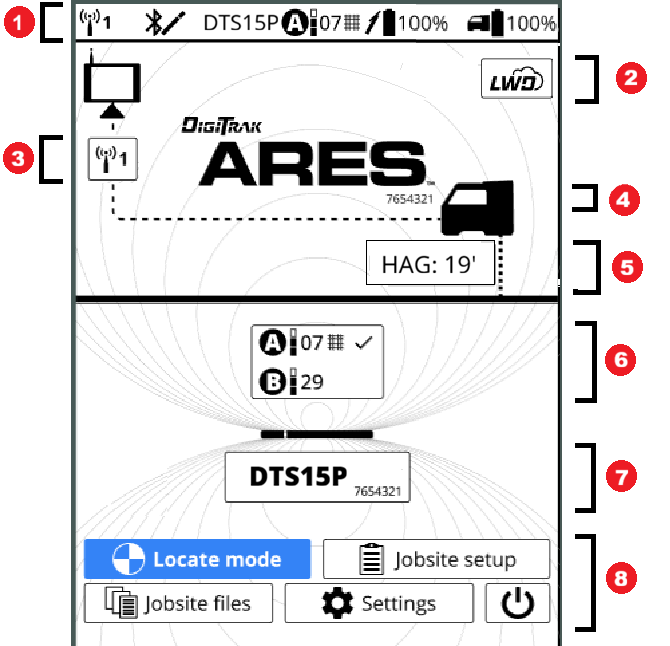

The Home screen is an at-a-glance view of your guidance system, including paired transmitter, active bands and frequencies, battery life, connectivity, and quick access to menus.

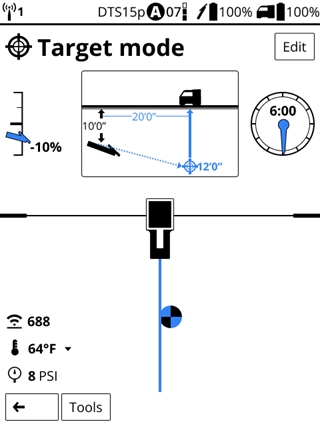

The Locate mode, Depth, Estimated Depth, and Target mode screens are the primary screens you will use for locating.

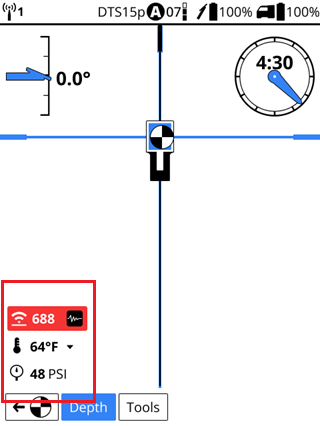

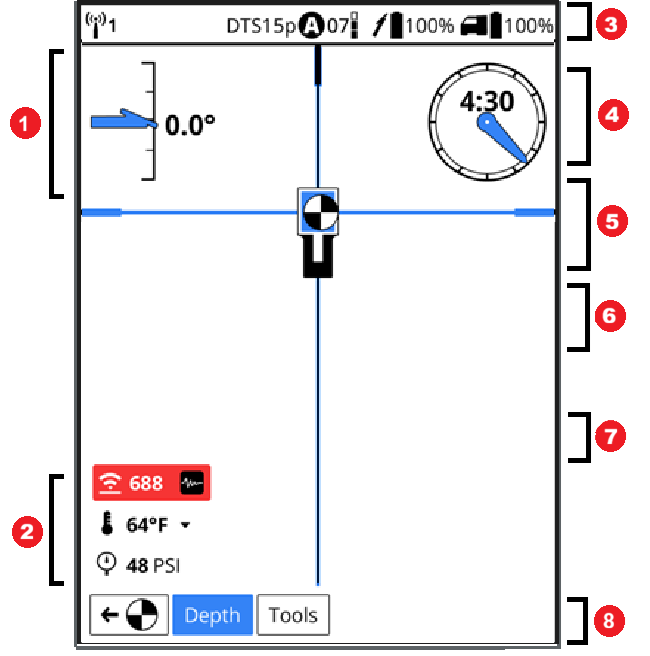

When the locator is detecting a signal from a transmitter, the Locate mode and Target mode steering screens provide real-time data about the transmitter’s location, temperature, pitch, roll, signal strength, and downhole annular fluid pressure *.

From the Locate mode and Target mode  steering screens, you can take a depth reading at the Locate Line * (LL) and predicted depth at the Front Locate Point *(FLP). At any other time, you can take a depth estimate between the LL and FLP.

The Home screen is an at-a-glance view of your guidance system, including paired transmitter, active bands and frequencies, battery life, connectivity, and quick access to menus.

The Locate mode, Depth, Estimated Depth, and Target mode screens are the primary screens you will use for locating.

When the locator is detecting a signal from a transmitter, the Locate mode and Target mode steering screens provide real-time data about the transmitter’s location, temperature, pitch, roll, and signal strength.

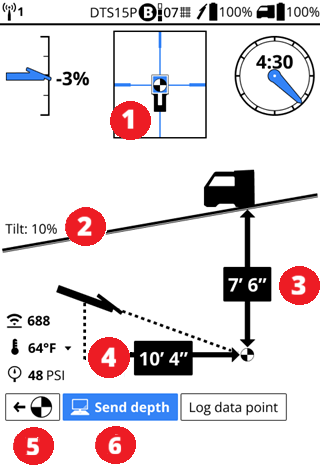

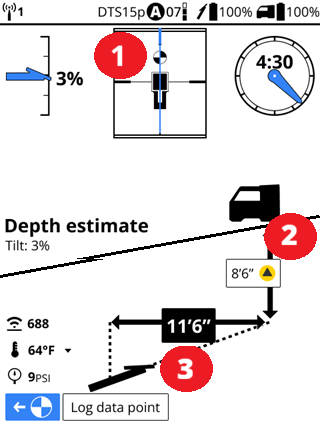

From the Locate mode screen, you can take a depth reading at the Locate Line * (LL) and predicted depth at the Front Locate Point *(FLP). At any other time, you can take a depth estimate between the LL and FLP.

Estimated depth should only be taken on the line between the LL and the FLP and is inaccurate beyond 35' (10.7m) from the LL or if behind the LL or off to the side of the centerline.  The locator must be facing down the bore path with the transmitter pointing at the ARES Genesis battery pack.

You can log a rod from an estimated depth reading, but only the pitch or a blank rod is logged.

Registering your DCI equipment at myDCI.digital-control.com allows you to:

• Activate product warranties
• Obtain and assign subscriptions to equipment, such as Trak-It for ARES Genesis locators and displays, the R1 App for bore planning, or the LWD App for transferring bore logs to a device
• Enable Trak-It theft tracking options for ARES Genesis locators and RD8 displays.

For more information about the myDCI portal and registering your equipment and purchasing subscriptions, go to the myDCI manual in the DigiGuide App.

Registering your DCI equipment at myDCI.digital-control.com allows you to:

• Activate product warranties
• Obtain and assign subscriptions to equipment, such as the LWD App for transferring bore logs to a device
• Enable Trak-It theft tracking options for  ARES Genesis locators and RD8 displays.

For more information about the myDCI portal and registering your equipment and purchasing subscriptions, go to the myDCI manual in the DigiGuide App

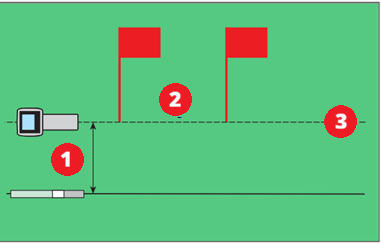

For areas with strong background interference (noise), you can verify that the selected frequency bands will reach the depth needed by walking the intended bore path with both the locator and transmitter at the same distance apart as the depth of the bore.

This procedure takes two people, one holding the locator and walking the intended bore path and the other holding the transmitter. At the start of the bore path, have the two people stand the same distance apart as the bore depth.  They will walk the bore path, keeping parallel to each other. The locator operator monitors the Locate mode screen for a strong, steady signal.  Occasionally, the transmitter operator should adjust the pitch and roll of the transmitter so the locator operator can verify the speed and accuracy of the locator's readings. Note any locations where the data displayed becomes erratic or disappears.

1. Maximum bore depth
2. Area of high interference
3. Intended bore path

Suggestions for dealing with interference

If pitch/roll data becomes erratic or is lost, move the locator away from the interference source while staying in range of the transmitter. You can use HAG, change the power level, or try off-track locating.

DigiTrak transmitters (Tx), with the exception of DucTrak, have temperature overheat indicators (temp dot) on the front end cap.

1. Black temp dot
2. Normal white temp dot

The temp dot has an outer yellow ring with a temperature-sensitive 1/8" white dot in the center. If the center temp dot is black, the transmitter has been exposed to excessive heat over 220°F (104°C) and should no longer be used and the warranty is voided.

Product ID: DR-ARES

Model number: AEO2

Receiving frequencies: 0.33 to 45.0 kHz

Accuracy ¹: ±5% of depth reading in a noiseless environment

Telemetry channels ²: 4

Telemetry range ³: Up to 3000 ft (900 m)

Target mode range ⁴: 35 ft (10.6 m)

L/R steering range: Range of transmitter

Power source: Lithium-ion battery pack

Battery life: 8–12 hrs

Functions: Menu-driven

Controls: Four-way D-pad and trigger

Graphic display: Full-color LCD

Audio output: Beeper

Voltage, current: 14.4 VDC nominal, 390 mA max

Operating temperature:  32° F to 113° F (0° C to 45° C)

Dimensions: 15 x 5.5 x 12.7 in (38.1 x 13.97 x 32.26 cm)

Weight (with battery): 8 lb 14 oz (4.02 kg)

Compatible transmitters: DTS15p, DT15p

Compatible remote displays: Aurora, RD8, FCD (manufactured after May 2026)

Warranty period: One year from date of purchase

(1) Over specified depth range for each transmitter model.

(2) Local telemetry frequencies and power levels available at digital-control.com.

(3) Telemetry range is dependent upon the remote display and optional external receiving antenna.

(4) Requires an Aurora Display.

COMPLIANCE
This equipment complies with the following: Part 15 of the Rules of the FCC; Innovation, Science and Economic Development Canada's license exempt RSS(s); ACMA Radio Communications Standard (2021) as found in ACMA Radio Communications Equipment General Rules (2021). Operation is subject to the following two conditions: (1) this equipment may not cause harmful interference, and 2) this equipment must accept any interference received, including interference that may cause undesired operation.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement

Digital Control Incorporated

19625 62nd Ave S, Suite B103, Kent WA 98032;

Phone +1.425.251.0559 or +1.800.288.3610 (US/CA).

To find a regional office, tap Contact on the DigiGuide menu bar or on the last page of the PDF version of the DigiGuide.

The DR-ARES contains a Bluetooth Smart Ready module, model #BT121, FCC ID QOQBT121. BT121 operates at a frequency of 24.02- 2480 MHz. The maximum output power is 0.013 W.

DigiTrak locators are classified as Class 2 radio equipment per the Radio Equipment Directive 2014/53/EU and may not be legal to operate or may require a user license to operate in some countries. For a list of restrictions, see the article, “Product CE Declarations of Conformity” can be found at www.digital-control.com or upon request to productcompliance@digital-control.com.

Patents - https://www.digital-control.com/patents/

Trademarks - https://www.digital-control.com/trademarks/

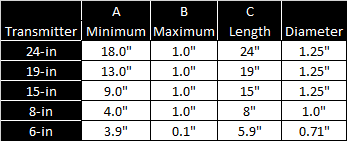

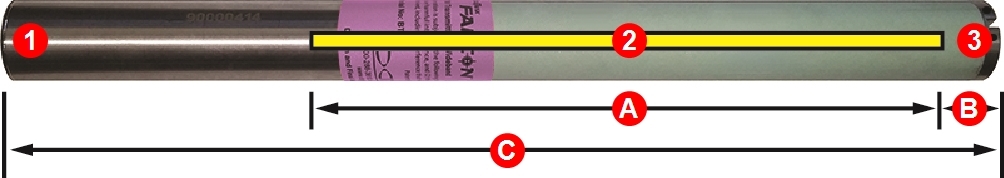

For maximum transmitter range and battery life, the slots in the drill head must meet minimum size requirements and be correctly positioned. DCI's transmitters require a minimum of three slots equally spaced around the circumference of the drill head. DCI transmitters fit standard housings but may require a battery cap adapter in some cases.

Measure slot lengths on the inside of the drill head; slots must be at least 1/16th inch (1.6mm) wide.

1. Battery cap

2. Slot position

3. Front end cap

A. Slot length

B. Slot position

C. Transmitter length

DigiTrak SuperCell-R battery and charger directions and technical specifications

Product IDs/Model numbers:

DLiChKit2.5 - DigiTrak Li charger kit 2.5a includes:

• CrSRD/RBC1 Cradle for SR40-R SuperCell-R - 1 of 2
• Ch2cLi/M3546 Charger for SR40 SuperCell-R 2.5A - 2 of 2
• SR40-R/RBP2v1 SuperCell-R Li-Ion rechargeable battery

Description: The DigiTrak Lithium-Ion charger kits include an AC power cord, a charger, a battery cradle, and two Lithium-Ion rechargeable batteries.

These batteries are for the exclusive use of the DigiTrak SuperCore transmitters. They can be recharged up to 300 times. The SR40-R SuperCell-R battery cannot be used in other DCI transmitters.

The battery charger operates from an AC power (100-240Vac, 50-60Hz, max. 0.74 max.). The AC power cord shipped with your system is standard to your region.

Safety warnings

• The charger is intended for indoor use and is not waterproof or dustproof. To avoid overheating, make sure there is sufficient air circulation around the charger when in use. Do not cover it up.
• The charger must be kept from heat sources and may not be used in environments with flammable or explosive atmospheres.
• The charger is only intended for use with DigiTrak SuperCell-R batteries. Do not use it with other types of batteries.
• Only use the cords that come with the charger.
• Unplug the charger when not in use.
• The charger contains hazardous voltages, and there are no user-replaceable parts inside. Never attempt to remove the cover. Contact DCI Support.
• Do not dispose of the charger with municipal waste. See the article "Equipment and Battery Disposal" in the Safety chapter.

Setup and charging

1. Connect the AC power cord to the charger and plug it into an AC outlet. If needed, you can connect the charger plug to the cradle. The charger may take up to 15 seconds to initialize. The LED indicator will flash green, indicating that the charger is ready.

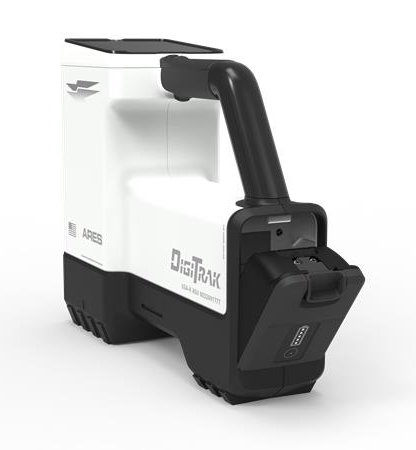

2. First, insert the end of the battery with the contacts into the cradle and press the battery firmly into it.
3. The LED indicator shows the charging stage and errors.
   • yellow (solid) - first 80% charging, approximately 2 hours.
   • yellow (blinking) - last 20% to full charge. The battery can be used at 80% charge,
   • green (solid) - fully charged, approximately 4 hours total.
4. Remove the battery and unplug the charger.
5. If you leave the battery in the charger, it will occasionally flash yellow as the charger tops the battery off to keep it fully charged. Do not leave the battery in the charger for more than 24 hours.
6. If you are charging multiple batteries in a row, wait 15 seconds before inserting another battery.

LED indicators

• Yellow (solid and blinking): battery charging
• Yellow with 1 red blink: battery temperature is too low (<32°F/0°C)
• Yellow with 2 red blinks: battery temperature is too high (>113°F /45°C)
• Green (solid): charge complete
• Green (blinking): no battery detected
• Red 2 blinks: the battery is connected to the charger with the wrong polarity
• Red 3 blinks: charger output is shorted. Check the output cable connection
• Red 4 blinks: battery voltage is low. Check battery status or voltage
• Red 5 blinks: The safety timer has run out. Check battery status or capacity
• LED off: Battery voltage is too high. Check the battery voltage

Battery Life

Battery life is determined by the locator that the transmitter is paired with and the selected power mode.  See the transmitter specification article for that model for details.

Specifications

• Charger weight (without battery or cables): 11.46 oz (325g)
• Charger power input rating: - 100-240Vac, 50-60Hz, max. 0.74 max.
• Charger power output rating: 21W max output power (8.4VDC at 2.5A)
• Li 2.5A battery weight and dimensions: 6.2 oz/.37 in X 2.48" (176 g/.94 cm X 6.3 cm)

Operating Environment

• Battery operation: 32°F to 113°F  (0°C to 45°C)
  Storage: 68°F (20°C)

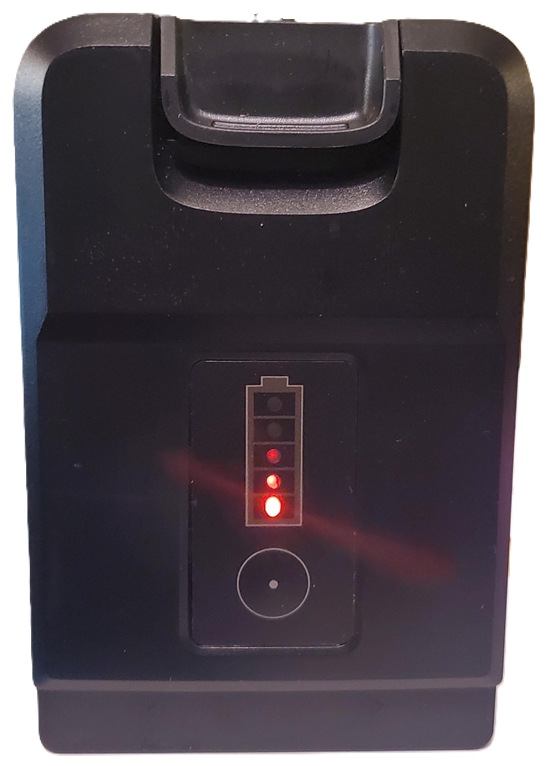

  Warning:  The battery will shut off at greater than 176°F (80°C) and the temperature dot on the battery will turn black.
• Humidity 15 - 93% RH NC
• Atmospheric pressure 70 - 106 kPa (700 - 1060 hPa)

Warranty: Charger for one year and battery for 90 days from the date of purchase. The warranty will be canceled if the battery temperature rises above 176°F (80°C) and the temperature dot on the battery turns black.

COMPLIANCE RATINGS

This equipment complies with the following: Part 15 of the Rules of the FCC; Industry Canada license-exempt RSS standards; ACMA Radio Communications (Short Range Devices) Standard (2014). Operation is subject to the following two conditions: (1) this equipment may not cause harmful interference, and 2) this equipment must accept any interference received, including interference that may cause undesired operation.

Depth Increase in Inches (cm)

Slopes between 50% and 100% are provided for reference only and do not represent typical drilling conditions. All numbers are based on math only and do not take into account extremely soft or extremely hard soil conditions, which may cause depth values to vary.

Depth Increase in Inches (cm)

Slopes between 50% and 100% are provided for reference only and do not represent typical drilling conditions. All numbers are based on math only and do not take into account extremely soft or extremely hard soil conditions, which may cause depth values to vary.

Depth Increase in Inches (cm)

Slopes between 50% and 100% are provided for reference only and do not represent typical drilling conditions. All numbers are based on math only and do not take into account extremely soft or extremely hard soil conditions, which may cause depth values to vary.

FCC Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device might not cause harmful interference, and (2) this device must accept any interference received, including interference that might cause undesired operation.

DCI is responsible for FCC compliance in the United States. Changes or modifications to any DCI equipment not expressly approved and carried out by DCI will void the user's Limited Warranty and the FCC's authorization to operate the equipment.

ISED Canada Compliance Statement
This device complies with Innovation, Science and Economic Development Canada's license-exempt RSS. Operation is subject to the following two conditions:

1.     This device may not cause interference.
2.     This device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3 (A)/NMB-3(A)
DigiTrak Locators are classified as Class 2 radio equipment per the Radio Equipment
Directive 2014/53/EU and may not be legal to operate or may require a user license to operate in some countries. For a list of restrictions, please send a request to productcompliance@digital-control.com.

Déclaration de conformité FCC
Cet appareil est conforme à la partie 15 des règles FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable.

DCI est responsable de la conformité FCC aux États-Unis. Toute modification apportée à un équipement DCI qui n'a pas été expressément approuvée et effectuée par DCI annulera la garantie limitée de l'utilisateur et l'autorisation de la FCC d'utiliser l'équipement.

Déclaration de conformité ISED Canada
Cet appareil est conforme aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. Son fonctionnement est soumis aux deux conditions suivantes :

1.     Cet appareil ne doit pas causer d'interférences.
2.     Cet appareil doit accepter toute interférence, y compris les interférences pouvant entraîner un fonctionnement indésirable de l'appareil.

CAN ICES-3 (A)/NMB-3(A)
Les localisateurs DigiTrak sont classés comme des équipements radio de classe 2 conformément à la directive 2014/53/UE relative aux équipements radio
et leur utilisation peut être illégale ou nécessiter une licence d'utilisation dans certains pays. Pour obtenir la liste des restrictions, veuillez envoyer une demande à productcompliance@digital-control.com.

Déclaration de conformité ISED Canada
Cet appareil est conforme aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. Son fonctionnement est soumis aux deux conditions suivantes :

1.     Cet appareil ne doit pas causer d'interférences.
2.     Cet appareil doit accepter toute interférence, y compris les interférences pouvant entraîner un fonctionnement indésirable de l'appareil.

CAN ICES-3 (A)/NMB-3(A)
Les localisateurs DigiTrak sont classés comme des équipements radio de classe 2 conformément à la directive 2014/53/UE relative aux équipements radio
et leur utilisation peut être illégale ou nécessiter une licence d'utilisation dans certains pays. Pour obtenir la liste des restrictions, veuillez envoyer une demande à productcompliance@digital-control.com.

Cet appareil est conforme aux exigences énoncées dans la norme 2014 sur les radiocommunications (appareils à courte portée).

This portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 (FCC 47 CFR § 2.1093) and IC Safety Code 6 (RSS-102).

*Individual user license required–check with your local authority. Unless otherwise noted, the maximum radiated power output is limited to 100m WERP. Please contact DCI at productcompliance@digital-control.com, if additional technical information or translation is required.

The FAR5 contains a BLE Radio with the following specifications: Frequency Bands: 2402-2480 MHz Transmit Power: 0.00135 W EIRP

The AEO2 contains Wi-Fi/BT and Cellular/GPS radios which operate on the following bands:

CE BANDS

GSM900: 880.2 – 914.8 MHz GSM1800: 1710.2 – 1784.8MHz

LTE Band 1: 1920 – 1980 MHz

LTE Band 3: 1710 – 1785 MHz

LTE Band 5: 824 – 849 MHz

LTE Band 7: 2500 – 2570 MHz

LTE Band 8: 880 – 915 MHz

LTE Band 20: 832 – 862 MHz

LTE Band 28: 703 – 748 MHz

LTE Band 38: 2570 – 2620 MHz

LTE Band 40: 2300 – 2400 MHz

LTE Band 41: 2496 – 2690 MHz

COMPLIANCE RATINGS

This equipment complies with the following: Part 15 of the Rules of the FCC; Industry Canada license-exempt RSS standards; ACMA Radio Communications (Short Range Devices) Standard (2014). Operation is subject to the following two conditions: (1) this equipment may not cause harmful interference, and 2) this equipment must accept any interference received, including interference that may cause undesired operation.
